Application Field: Placket machine，Bag opening machine，Machining positioning，Needle row / Printing machine，Packaging machinery

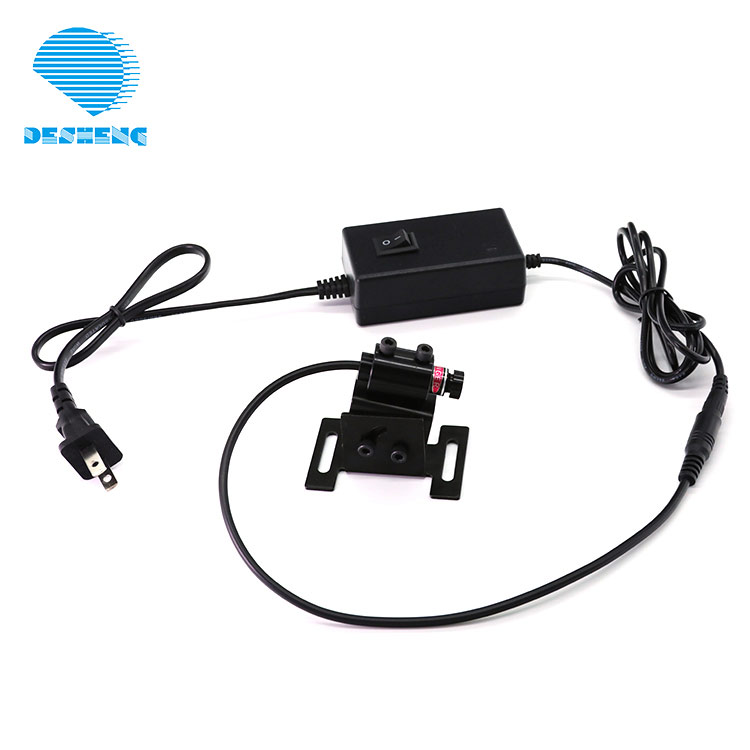

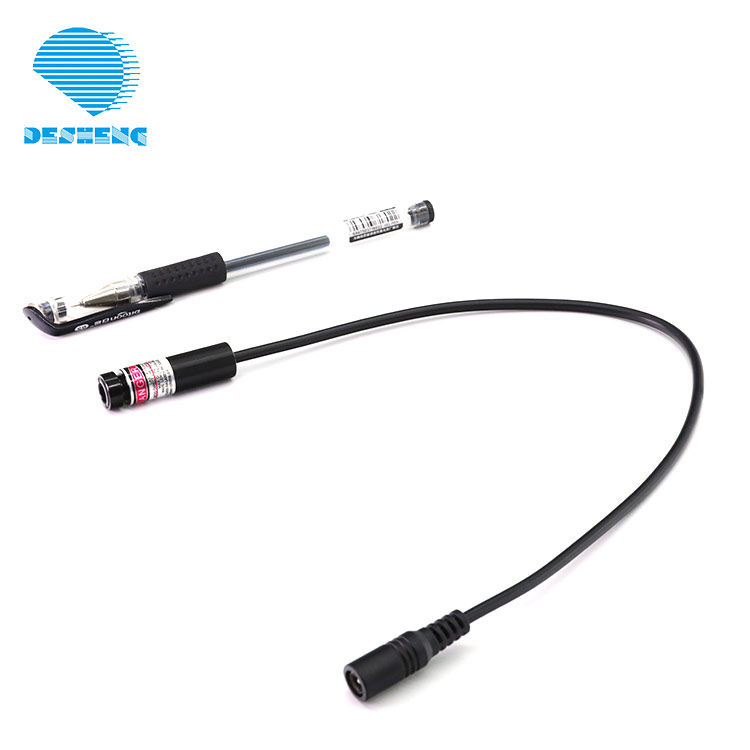

The DS1245 laser module is equipped with an imported laser diode to match the self-developed high-performance con
| Diameter | Φ12×45mm |
| Wavelength | 515nm,520nm,635nm,650nm |
| Power | 0.5-10mW |

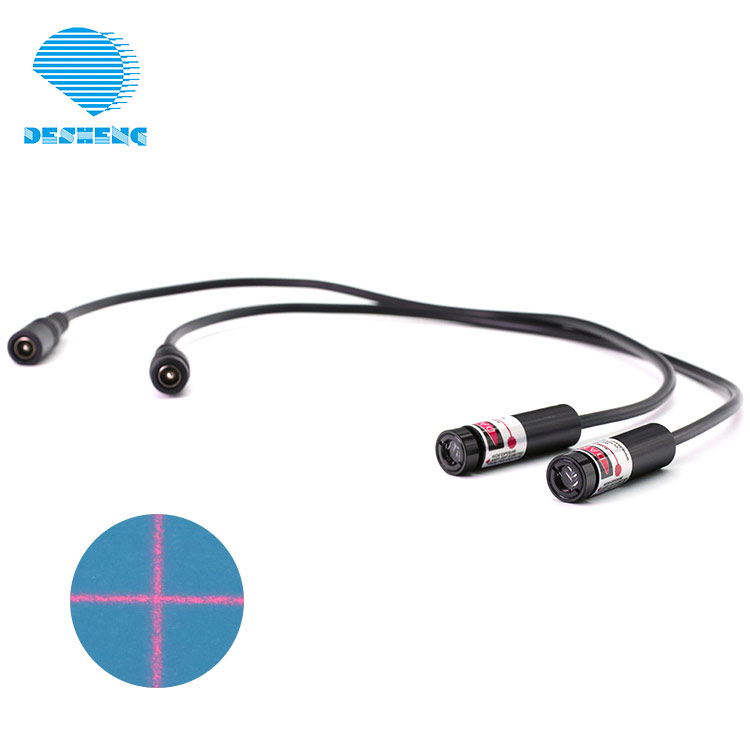

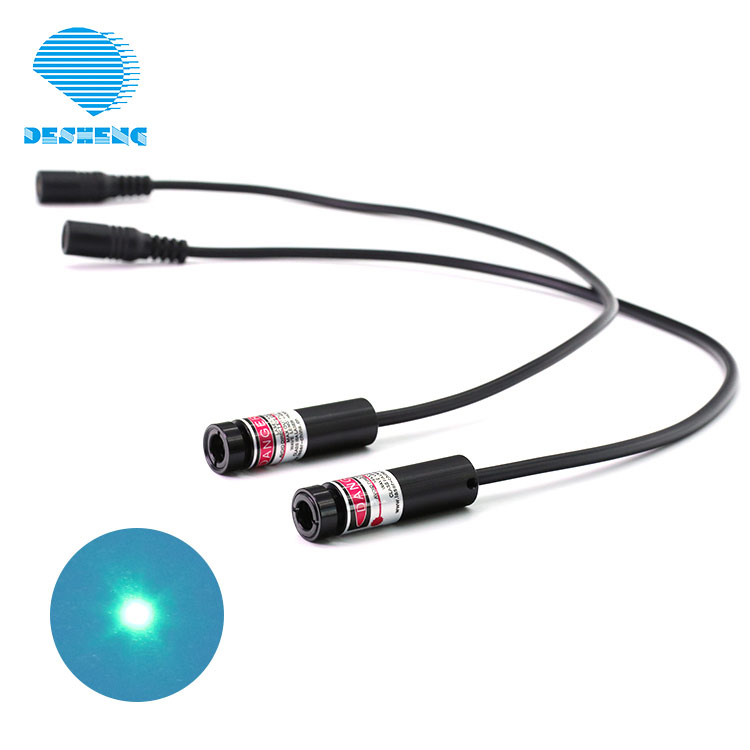

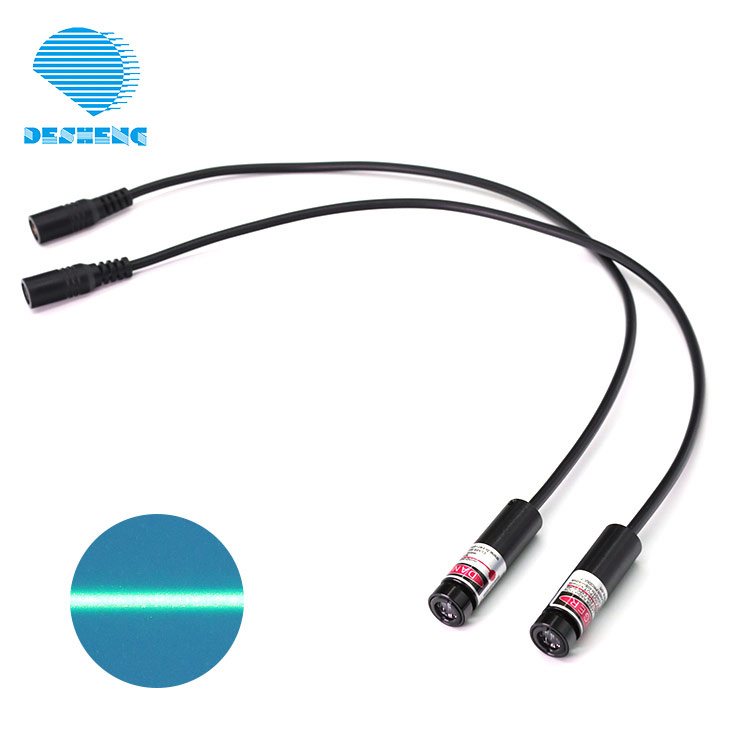

| Light Type | Line/Cross/DOE |
| Beam Angle | 5-130° |
| Focus | Manual Focus |
| Working Voltage | 3-5v/12-24v |
| Laser Class | 1-3B/I-IIIb |
